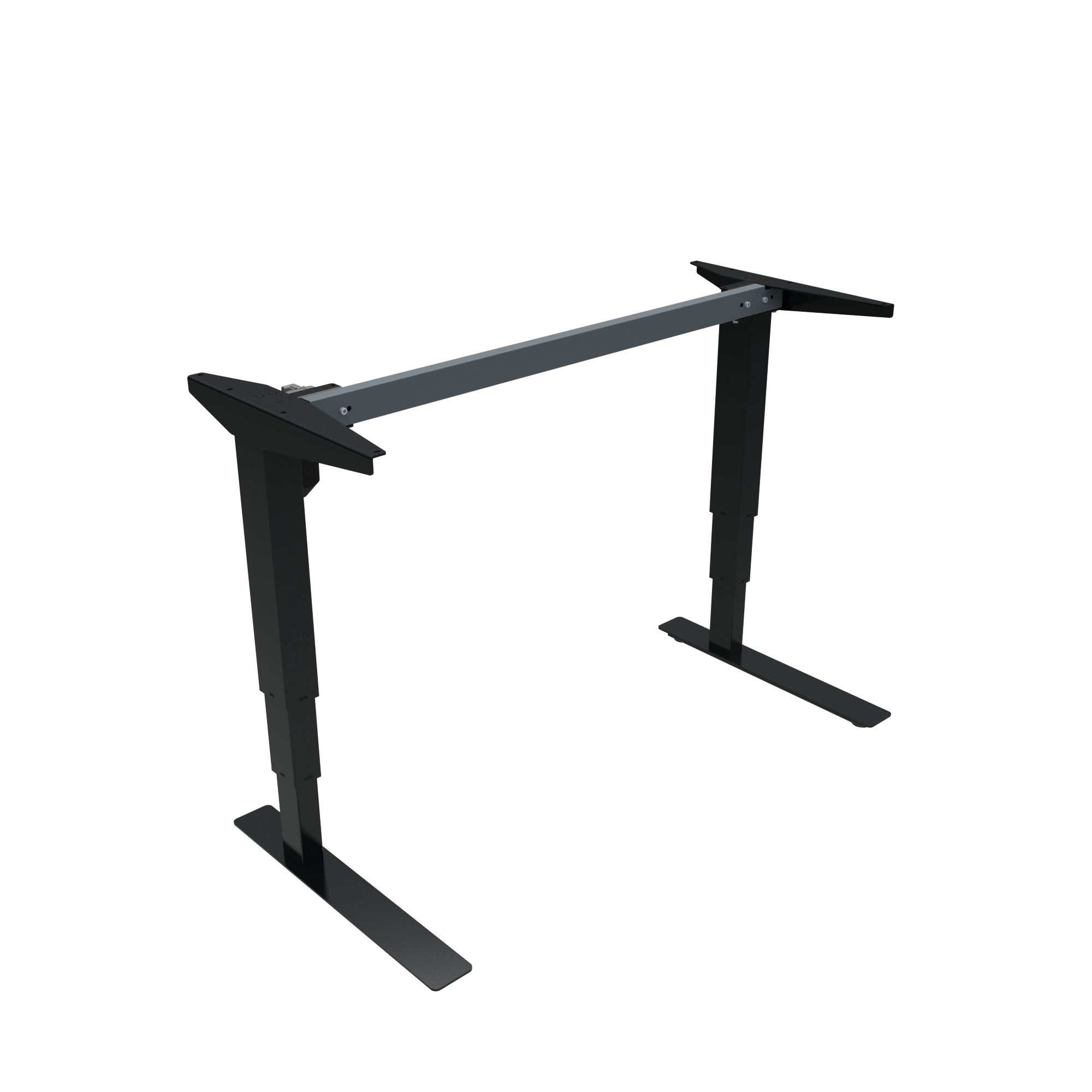

Conset Electric Desk Frame - 501-37 Black

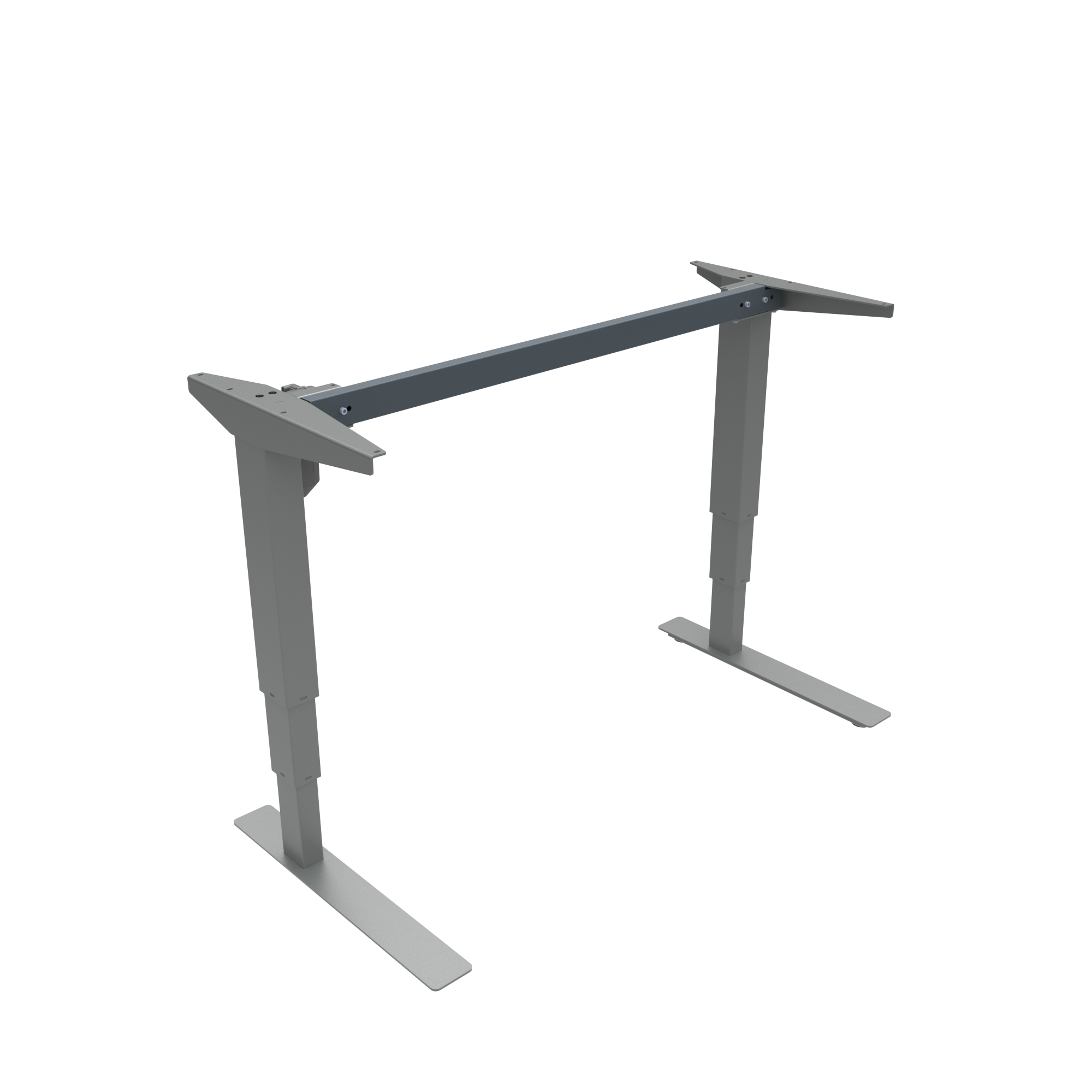

Conset Electric Desk Frame - 501-37 Silver

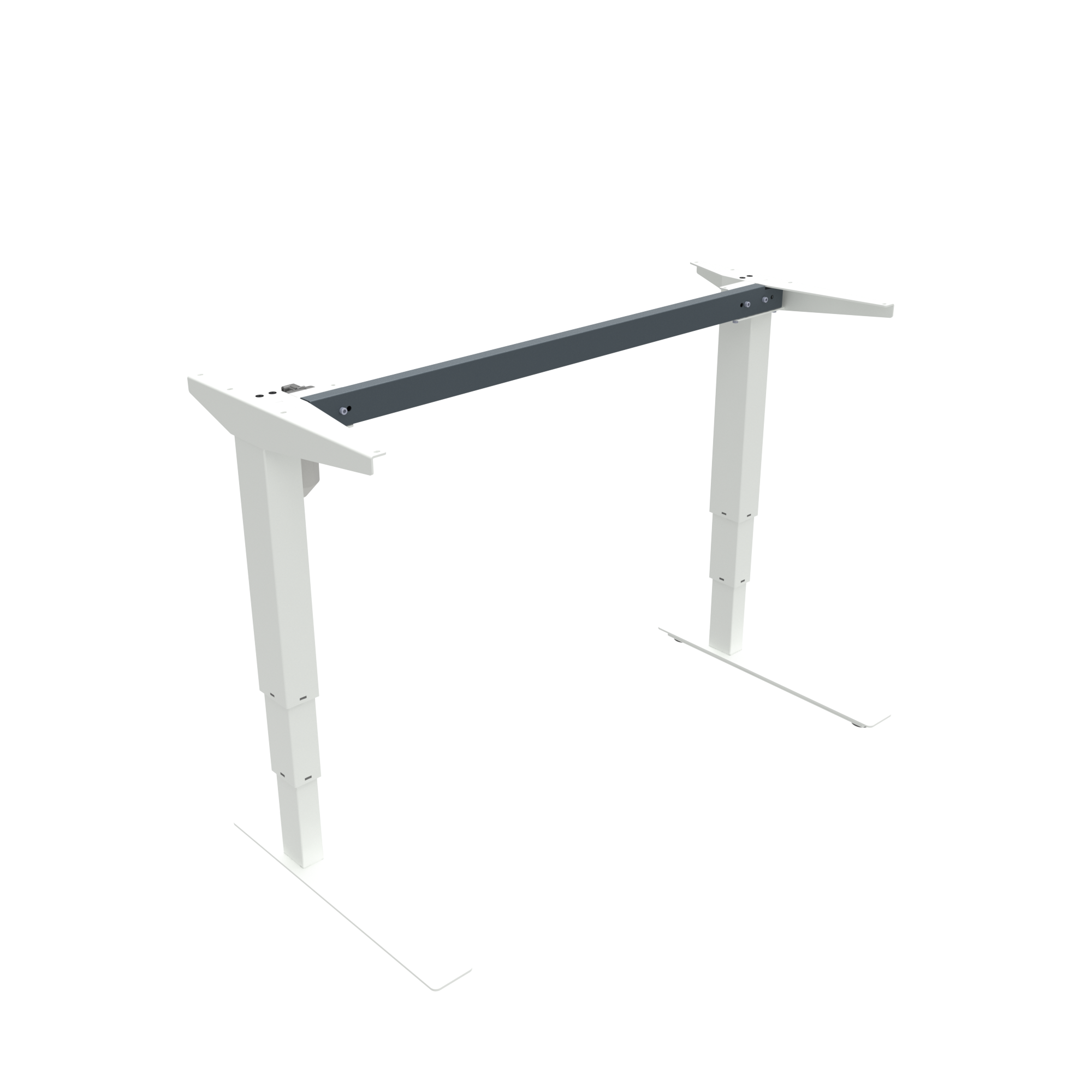

Conset Electric Desk Frame - 501-37 White

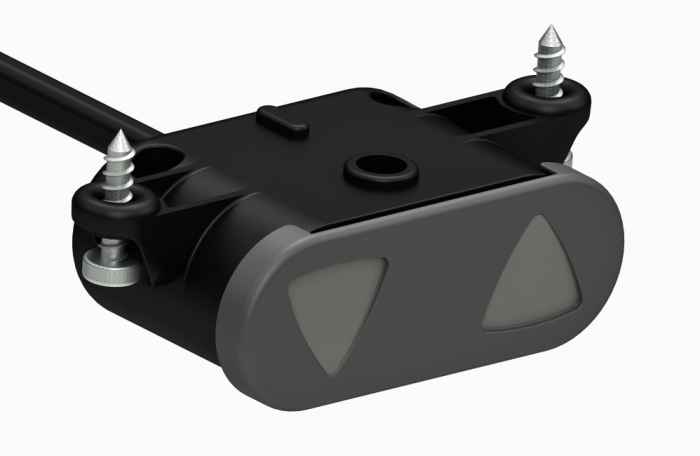

Conset Electric Desk Frame - 501-37 Control
Conset Electric Desk Frame - 501-37 Casters
Conset Electric Desk Frame - 501-37 Programmable Control
Castorset, 501-(37,19)
Castorset, 501-(37,19)
Roll over image to zoom in Click on image to zoom
Conset Electric Desk Frame - 501-37 BlackConset Electric Desk Frame - 501-37 SilverConset Electric Desk Frame - 501-37 WhiteConset Electric Desk Frame - 501-37 ControlConset Electric Desk Frame - 501-37 CastersConset Electric Desk Frame - 501-37 Programmable ControlCastorset, 501-(37,19)Castorset, 501-(37,19)

Conset Electric Desk Frame - 501-37

CONSETSKU: 501-37 8B

Note: Shipping charges vary and billed separately.

Special Order. Non-Cancellable/Non-Returnable/Non-Refundable. Sale in final. Credit Card payment due with your Order.

Contact Us for Pricing

Description

Modern open frame design and a remarkable low height, which makes 501-37 very useful in all office and education environments. A product designed for flexible ergonomics for both the individual and for changing users.

  • The frame is tested and approved according to ANSI/BIFMA X5.5-2014.
  • Built-in multi drive increases the frame's usable capacity.
  • The steel is powder coated. Quick and easy to assemble.
  • Height adjustment: 22" - 48"
  • Lift weight: 220 lbs.
  • Certification: ROHS, ANSI/BIFMA

Frame Colors:

  • RAL 9016 White
  • RAL 9006 Silver
  • RAL 9004 Black

501-37 Sizes

ADD:

SKU: 501-37 8XXX - Casters

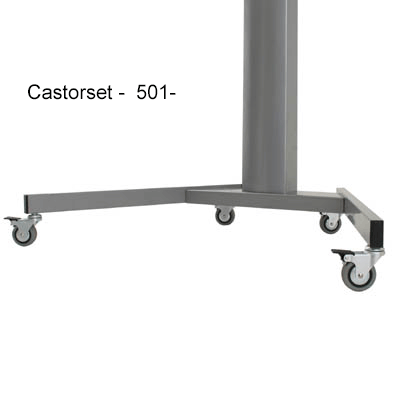

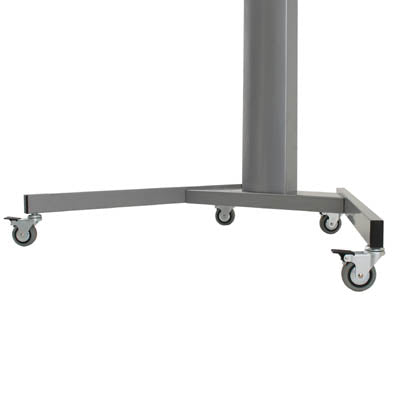

  • The castor set consists of 4 turnable wheels - all with wheel locks. The wheels are easily mounted using the same threaded hole as used for the adjustable glides. Delivered complete with fittings.
  • The size of the wheels (75mm diameter) ensures that the table is easy to move.

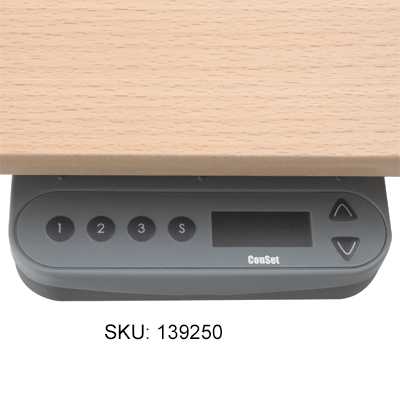

SKU: 139250 - Programmable handset

  • 139250 is a programmable pre-set control panel to adjust the height.
  • The digital display is showing the approximate table height and movement.
  • The programmable control panel offers the possibility of three individual users to program their own height settings and even with up to three individual height settings per. user.
  • At any time you can use the UP/DOWN buttons to adjust the height of the table without affecting the programmed heights.

SKU: 501-37 8B082 - width 82 cm | 32.28" - Black
SKU: 501-37 8B092 - width 92 cm | 36.22" - Black
SKU: 501-37 8B112 - width 112 cm | 44.1" - Black
SKU: 501-37 8B129 - width 129 cm | 50.79" - Black
SKU: 501-37 8B142 - width - 142 cm | 55.91" - Black
SKU: 501-37 8B152 - width - 152 cm | 59.84" - Black
SKU: 501-37 8B172 - width - 172 cm | 67.72" - Black

SKU: 501-37 8S082 - width 82 cm | 32.28" - Silver
SKU: 501-37 8S092 - width 92 cm | 36.22" - Silver
SKU: 501-37 8S112 - width 112 cm | 44.1" - Silver
SKU: 501-37 8S129 - width 129 cm | 50.79" - Silver
SKU: 501-37 8S142 - width - 142 cm | 55.91" - Silver
SKU: 501-37 8S152 - width - 152 cm | 59.84" - Silver
SKU: 501-37 8S172 - width - 172 cm | 67.72" - Silver

SKU: 501-37 8W082 - width 82 cm | 32.28" - White
SKU: 501-37 8W092 - width 92 cm | 36.22" - White
SKU: 501-37 8W112 - width 112 cm | 44.1" - White
SKU: 501-37 8W129 - width 129 cm | 50.79" - White
SKU: 501-37 8W142 - width - 142 cm | 55.91" - White
SKU: 501-37 8W152 - width - 152 cm | 59.84" - White
SKU: 501-37 8W172 - width - 172 cm | 67.72" - White

NOTE: Shipping charge varies and billed separately
