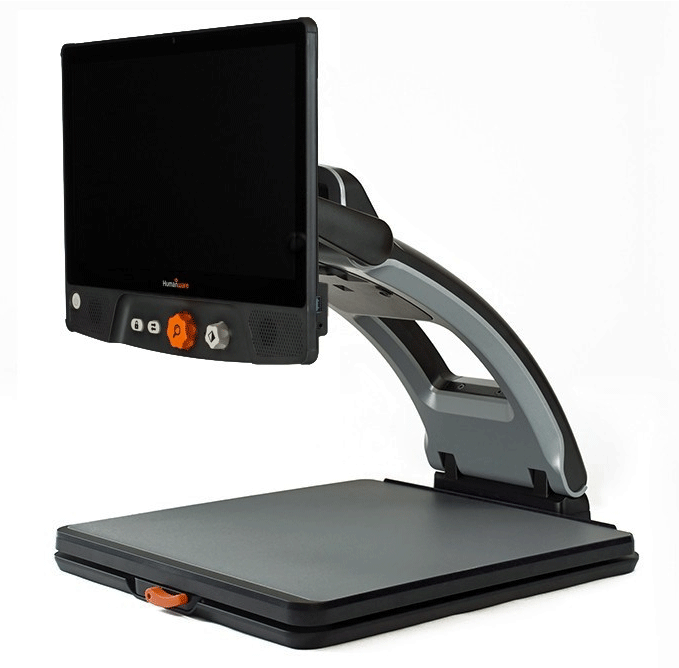

Reveal 16i Full HD digital magnifier

Reveal 16i is a unique, smart, intuitive, and compact foldable magnifier. Designed with simplicity in mind, this new versatile digital magnifier is the perfect solution to help you stay productive in your daily life.

BE SMART, BE CONNECTED!

Reveal 16i is a smart all-in-one device that allows you to video chat with friends, check your emails, watch videos on YouTube, download applications from Play Store and have all the printed material read to you thanks to its integrated Optical character recognition (OCR) and Text-to-speech (TTS) capabilities.
You can also open your books and take digital notes before sharing them with others thanks to Reveal 16i.
Reveal 16i is an ideal tool that adapts to you rather than you to it. It has an integrated touchscreen allowing you to customize your experience. You can choose to use the touchscreen like you would with a tablet or use the buttons.

ONLY ACCEPT THE BEST!

Thanks to the Reveal 16i’s 10x optical zoom camera, you will get an uncompromised image quality. You can read books or newspapers and even see distant objects like the beautiful landscape around you thanks to the distance viewing camera.

EASY TO USE, EASY TO STORE!

• Reveal 16i is ergonomically designed to be easy to fold, carry and store.
• Easily store Reveal 16i when not in use or bring it with you as needed by using the optional carrying case. It’s compact, lightweight and takes little space.
• Google Play Store accessible to download thousands of applications
• Google Docs, Drive, Gmail, Google+, Hangouts, Chrome already installed. Reveal 16i is also connected to Bookshare
• Optical character recognition (OCR) and Text-to-speech (TTS) capabilities
• Digital editing
• Touchscreen
• Free automatic software updates
• Internet and Bluetooth connections
• USB and High-Resolution video output, headphone jack
• Adjustable 16-inch screen
• 10X magnification optical zoom
• Up to 45X digital magnification
• Real 1X
• Polarized LEDs
• Optional battery available
• Optional carrying case
• Robust and foldable

Features

• Android access: Yes
• Internet access: Yes
• Bluetooth: Yes
• USB 3.0 and Headphone Jack: Yes
• Microphone and front Facing Camera: Yes
• OCR on Latin Characters: 6 pts
• OCR on Chinese Characters: 8 pts

Unit Dimensions and Weight Reveal16i Open

• Height: 14.57” | 370 mm
• Width: 14.96” | 380 mm
• Depth: 18.3” | 464 mm
• Weight: 14.33 lbs. | 6500 g

Unit Dimensions and Weight Reveal16i Folded

• Height: 5.9” | 150 mm
• Width: 14.96” | 380 mm
• Depth: 18.6” | 473 mm
• Weight: 14.33 lbs. | 6500 g
• Weight with Battery: 15.2 lbs | 6900 g

Screen Specifications

• Display: 15.6” diagonal – 1080p IPS eDP Active Capacitive 10-point Touch Glass Panel
• Aspect Ratio: 16-9
• Resolution: 1920x1080
• Minimum Viewing angle: 70
• Pixel Arrangement: RGB Vertical Strip
• Power Consumption: 3.08W
• Display frequency: 50Hz, 60Hz
• TouchScreen: Yes

Live Camera Specifications

• Resolution: 1080p
• Minimum Live Magnification: 1x
• Maximum Live Magnification: 45x
• Minimum Optical Magnification: 1x
• Maximum Optical Edge Magnification: 10x
• Focus: Auto-focus

OCR Camera Specifications

• Resolution: 21 Mpx
• Freeze Frame: Yes
• Focus Close-up: Fix auto-focus
• Focus Far: auto-focus or locked auto-focus

Battery Specifications

Battery autonomy: 5 to 6 hours with Lighting on.
Battery charging time: 6 hours
