Pocketalker 2.0 Personal Voice Amplifier

• Dimensions: 4.9” L x 2.0” W x 1.0” H. (124mm x 51mm x 25mm) (Not including clip or microphone assembly)
• Weight: 3.1 oz. (88 grams) (with batteries)
• Color/material: White ABS/Polycarbonate molded plastic case.
• *Battery Type: Two (AAA size), either 1.5 VDC Alkaline* or 1.2 VDC NiMH rechargeable* (Williams Sound BAT 010-2 Alkaline or BAT 022-2 NiMH)
• Battery Life: Up to 105 hours (typical usage) with the BAT 010-2 (Alkaline).
• Low Battery Indicator: Power “On” Green light on front panel flashes.

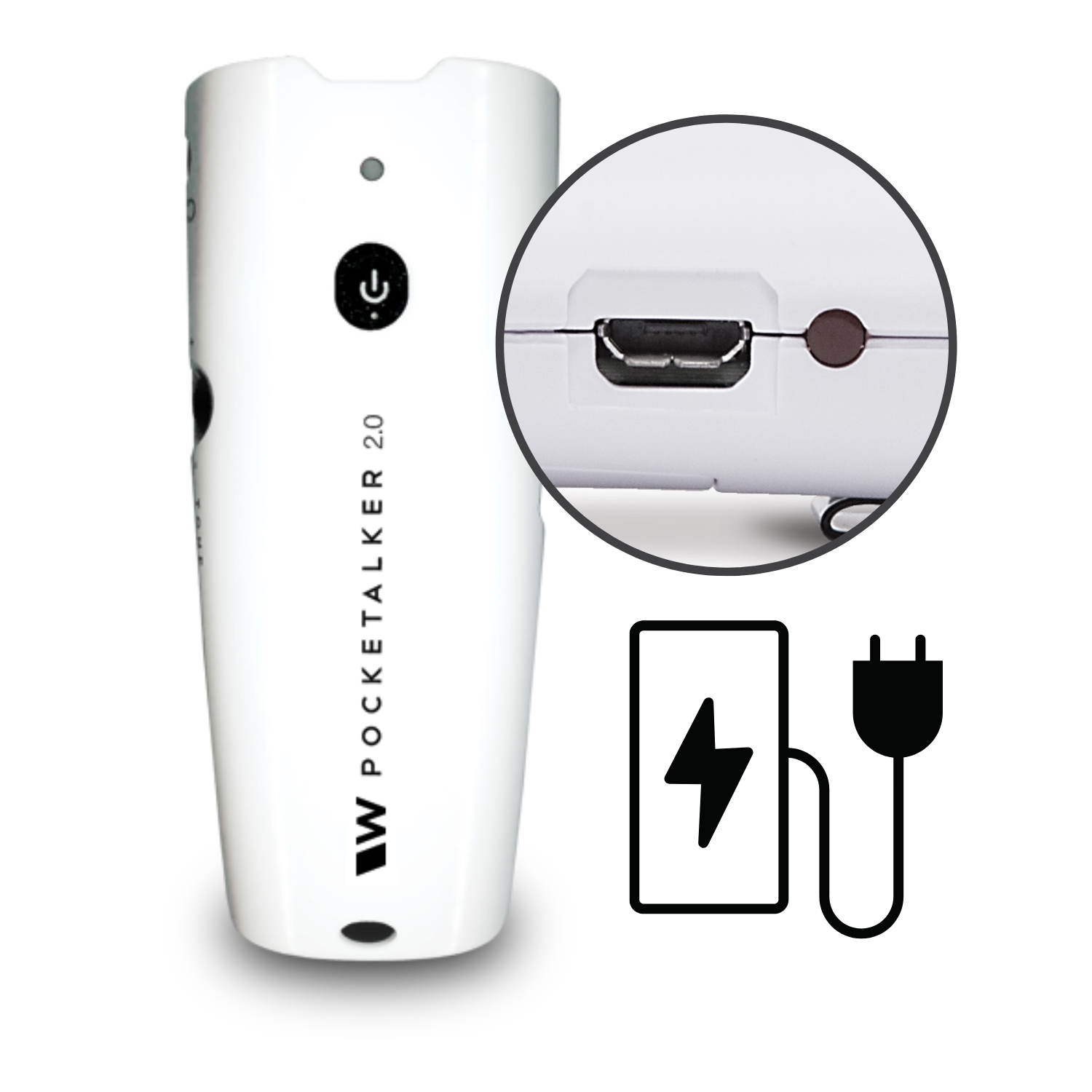

• **NiMH battery Charging: Charging: 16 hours with BAT 022-2. Red LED blinks when charging.
• End of Charge: Red LED is on solid. At end of charge, maintenance charge is provided.
• NOTE: Charging requires optional charging kit BAT KT7.

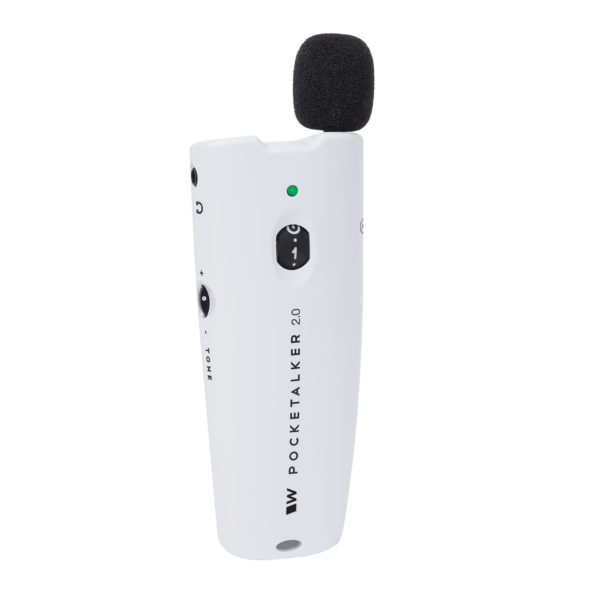

• Microphone: Internal, omnidirectional MEMS microphone (micro-electro-mechanical system). Optional External, omnidirectional, plug-in electret microphone with foam windscreen and 3.5mm mono plug (MIC 014-R).

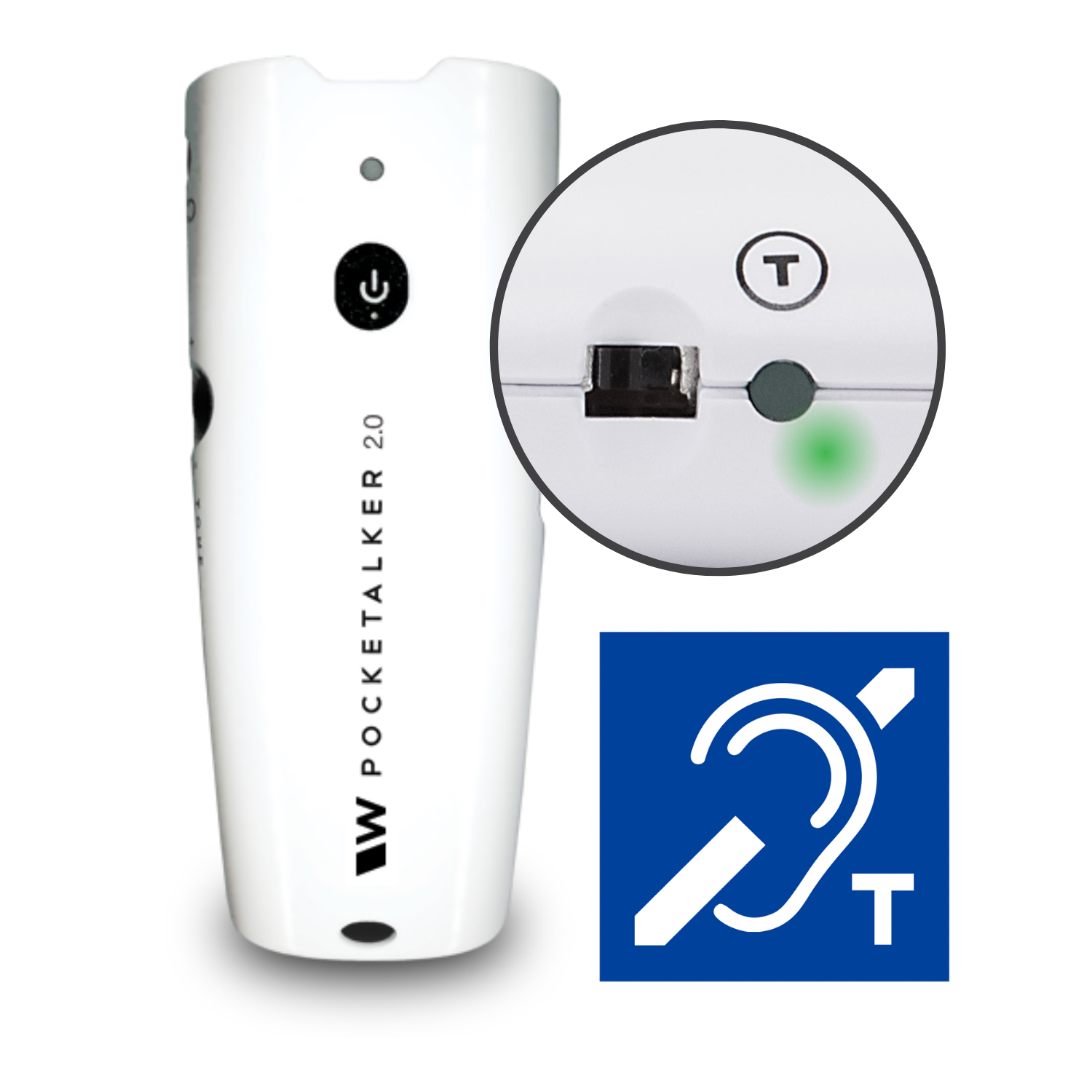

• T-Coil: Internal with on/off switch and LED indicator.

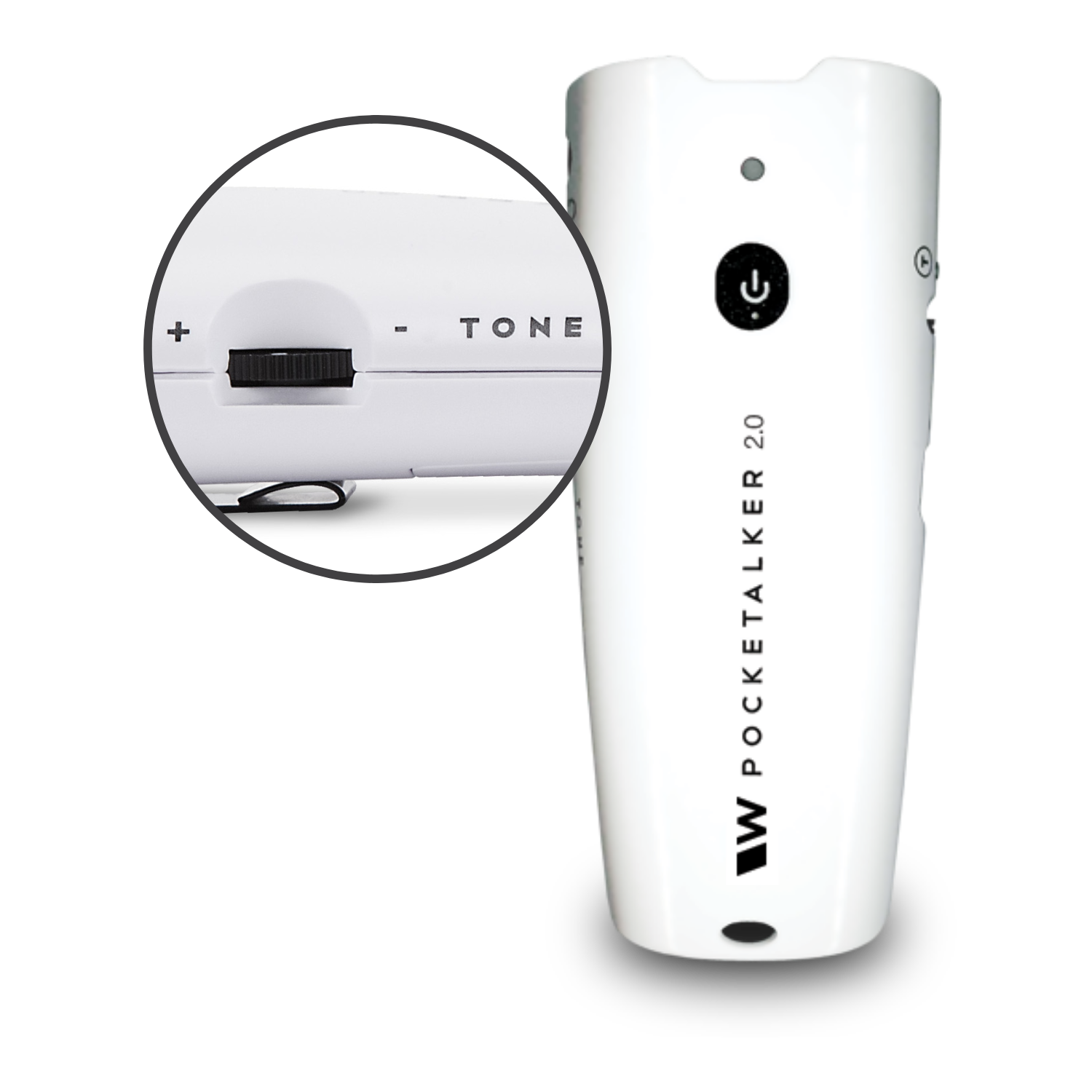

• Tone Control: External rotary control knob allows user to adjust high/low frequency to optimize hearing.
• ***Balance Control: Adjusts Left/Right Volume Balance
• Power/Volume Control: External rotary volume control knob with integrated power ON-OFF switch.
• Microphone Jack: 3.5 mm, stereo mini plug. Tip=Mic signal, Ring=NC, Sleeve=Gnd.
• Headphone Jack: 3.5 mm, stereo mini plug. Tip=Left/Mono, Ring=Right, Sleeve=Gnd.
• Optional Accessories:
• Clip: CLP 014; Allows the user to clip MIC 014 to clothing such as a lapel or shirt pocket.
• Lanyard: RCS 003; Allows user to wear unit around the neck, or as a wrist strap.
• 3.5mm-3.5mm Extension Cord: WCA 007 WC; extends an external microphone to 12 ft.
• Stereo Earphones / Headphones / Neckloop: EAR 042 / HED 024, HED 036 / NKL 001-S (stereo) Neckloop
• Mono Earphones / Headphones / Neckloop***: EAR 013, EAR 008, EAR 022, EAR 041 / HED 021, HED 027 / NKL 001 (mono) Neckloop
• Charging Kits: BAT KT7
• Approvals: CE (Note 1), RoHS2 (Note 2), FCC, IC, WEEE (Note 3). Electrical Specifications (1 kHz Sine Wave reference) Typical
• Power output: 52 mW (max) into 32 ohms (Stereo)
• ALC: Automatic Level Control; Limits maximum output level
• Distortion: 1% THD (max)
• Max gain: 63 dB @ 2.5 kHz (Tone=High)
• Operational temperature: 41°F to 104°F (5°C to 40°C) Frequency response
• Tone Control at high position: 2.7dB boost at 5 kHz, 6.7dB cut at 400 Hz.
• Tone Control at mid position: 0.6dB cut at 5 kHz, 2.9dB cut at 400 Hz.
• Tone Control at low position: 2.0dB cut at 5 kHz, 3.0dB boost at 400 Hz.
• SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
• *Battery switch must be in correct position for battery type being used.
• **Charging requires optional charging kit BAT KT7.
• ***When using mono earphones, headphones or neckloop, the balance control on the Pocketalker must be turned fully counter-clockwise (to the “mono” position) for best volume and battery life.
• The Pocketalker is not sold, advertised, or intended for use as a personal hearing aid. Williams Sound/SNCS recommends that any individual experiencing hearing loss be examined by a physician/audiologist to determine the cause before using an amplification device such as the Pocketalker.
• Acoustic Specifications for Headphones recommended for use with the Pocketalker are published on our website.
• Note 1: CE approval does not apply if product does not display the CE mark.
• Note 2: RoHS2: Directive 2011/65/EU
• Note 3: WEEE: Directive 2012/19/EU
• This product is covered by the European directives above, including amendments, concerning Waste Electrical and Electronic Equipment (WEEE). Recycle the product and its accessories according to national regulations.

EAR 042

• Style: Dual, in-ear, isolation earphones
• Plug: 3.5mm stereo
• Cord: 39"
• Driver Size: 10 mm
• Nominal Impedance: 32Ω
• Freq. Response: 20 - 20kHz
• Weight: 10g
• Max Power Input: 5 mW
• Sensitivity: 104 dB @ 1kHz
• Replacement Silicone Tips: EAR 043 (0ne pair)

HED 024

• Style: Stereo Headphones
• Plug: 3.5mm stereo
• Cord: 39"
• Driver Size: 30 mm
• Nominal Impedance: 16Ω
• Freq. Response: 20 - 20kHz
• Weight: 60g
• Max Power Input: 100 mW
• Sensitivity:108 dB @ 1kHz
• Replacement Pads: HED 023 (one pair)

MIC 014-R

• Phantom Powered: No
• Pick-Up Pattern: Omni-directional
• Element: Electret Condenser
• Mic Diameter: 10 mm not including windscreen 19 mm with windscreen
• Sensitivity: -42 dB ± 3 dB
• Frequency Range: 20 Hz - 16 kHz
• Output Impedance: 2.2 kΩ
• Standard Operation Range: 2 - 10 V DC
• Signal-to-Noise Ratio[gt]: 58 dB
• Replacement Windscreen: WND 002
• Optional 12 ft Extension Cord: WCA 007
• Optional Microphone: ClipCLP 014
• Color: Gold
• Weight: 5 g (0.2 oz.)
• Plug: 3.5 mm mono
• Cord: None
• Approvals: RoHS
• Warranty: 90 days

• 5 years, parts and labor (90 days on accessories)
